G2 Access Point & G2 Power Injector (wireless adapters)
Allows the T-Max® System to be connected without the need to connect daisy-chain wires.
Uses 900MHz for communications.

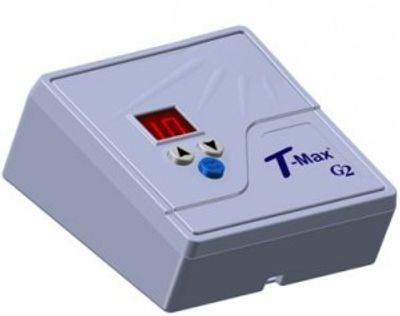

T-Max G2
The T-Max® 3W G2 can operate as a stand-alone timer or be controlled from the front desk. Up, Down, and Start/Stop buttons allow for easy control of your tanning bed. Terminals that screw down provide flexible and easy wire connections.
All parameters, such as lamp hours, session counts, bed hours, etc. can be accessed and changed right on the T-Max® 3W G2. All these features provide an easy to install and inexpensive way to control a tanning bed from the front desk of your salon. Up to eight T-Max® Manager Pro and/or T-Max® Manager G2s can be connected to a single salon.
The T-Max® 3W G2 is also wireless ready. It can connect to a G2 Access Point to communicate throughout your tanning salon without the need to run cables throughout your salon.
The T-Max® 3W G2 can be used as an independent timer, or can be used as the front desk to control another T-Max® timer in the tanning room for remote single bed control. The T-Max® 3W G2 at the front desk will control the T-Max® timer in the room; whether it’s another T-Max® 3W G2 or a T-Max® certified timer in the tanning bed.
Manager Pro
Features: The T-Max Manager/Pro is the front desk control unit for the T-Max Series.
It can be connected to up to 64 T-Max 3As to control up to 64 tanning beds in a single salon. The T-Max Manager/Pro has 64 dual-colored lights showing bed status. If the light for a certain bed is green, the bed is ready for a new session.
If the light is red, the bed needs to be cleaned. If the light is flashing red, there is less than two minutes left in the session. If the light is flashing green, the T-Max 3As is in the cool-down mode. If the light is off, that bed is not available. A 16×2 easy to read Vacuum Florissant Display (VFD) shows the exact status of a given bed. A 16 key keypad allows for manual session control.
The T-Max Manager/Pro can be used manually or be controlled with a PC using today’s most popular tanning software. Information such as session counts, lamp hours, and bed hours can be monitored and changed either with a PC or using the T-Max Manager/Pro manually.
Manager G2
The T-Max® Mgr G2 has 10 LED displays across the top. These displays show bed status, ten beds at a time. Below each display are two push buttons: the Set and Start/Stop buttons. These buttons control bed operation. On the lower left side of the T-Max® Mgr G2 are ten LEDs aligned horizontally, with a push button labeled “Change Display Of Beds” to the left.
Each LED represents 10 beds. When the left LED is displayed, beds 1-10 are shown on the displays. When the next LED is illuminated, beds 11-20 are displayed, and so on. Which ever bed is shown on the display will be the bed controlled by the two push buttons below that display. Pressing the “Change Display Of Beds” button changes which beds are displayed and controlled.
On power up the T-Max® Mgr G2 will scan the network to find all T-Max® certified timers connected. Two dashes on a display indicates that no timer was found at that address.
